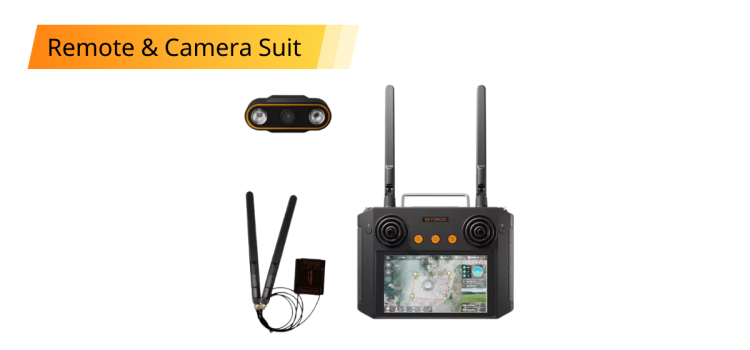

Remote & Camera Suit - RCS6301B1

Technical Specification

Remote & Camera Suit

Parts nr.

RCS6301B1

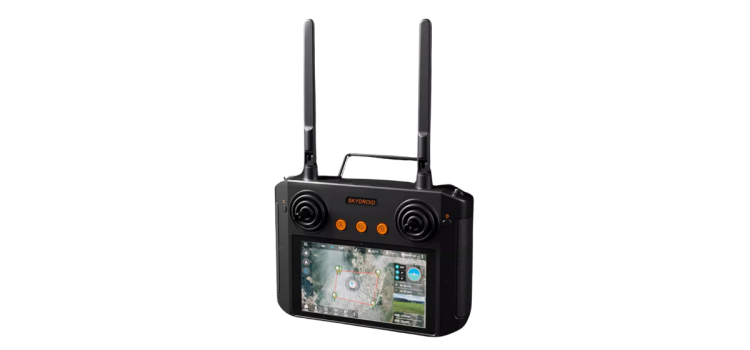

Remote controller

Dimensions

190x152x94mm

Weight

660g

Model

H12 PRO

Channels

12

Working Voltage

4.2V

Transmit Power (2.4 GHz)

Total ≤17.5dBm

16.0 ±1.5 dBm@11Mbps, 802.11b, Spectral Mask: < -15 dB

14.0 ±1.5 dBm@54Mbps, 802.11g, Spectral Mask: < -25 dB

13.0 ±1.5 dBm@HT20, MCS7, 802.11n, Spectral Mask: < -28 dB

13.0 ±1.5 dBm@HT40, MCS7, 802.11n, Spectral Mask: < -28 dB

Frequency Range

2.400-2.483GHz

Multiplexing Technique

OFDM

Modulation Types

CCK, DQPSK, DBPSK

Transmit Speed

6.5-144Mbps

Receiver Sensitivity (2.4GHz)

-94 dBm @1 Mbps,     PER < 8%

-85 dBm @11 Mbps,    PER < 8%

-70 dBm @54 Mbps,    PER<10%

-65 dBm @HT40-MCS7, PER<10%

Battery

10000mAh

Working Time

6-20hrs

Power Supply Interface

USB Type-C

Communication Range

6–10 km (air-to-air, unobstructed environment)

1.2–1.5 km (ground-to-ground, open area)

Screen size

5.5 inch

Screen Resolution

1080P
